What is the real-world range of the EC40?

The EC40 offers a range of up to 451 km (280 mi) / WLTP under WLTP standards, depending on driving conditions and trim.

How fast can the EC40 charge (charging time & max power)?

It supports DC fast charging up to 150 kW, reaching 10–80% in about 28 minutes at compatible stations. AC charging is 11 kW from a home wallbox.

Does the EC40 support V2L or bidirectional charging?

No, V2L (Vehicle-to-Load) or bidirectional charging is not supported in the standard model.

What is the trunk size of the EC40? Does it have a frunk?

The 2024 Volvo EC40 Single Motor has a trunk capacity of 413 L (14.6 ft³) standard, expandable to 1205 L (42.5 ft³) with rear seats folded. Frunk availability hasn't been officially confirmed yet.

What are the dimensions of the 2024 Volvo EC40 Single Motor — length, width, height, and wheelbase?

The 2024 Volvo EC40 Single Motor measures 4440 mm (174.8 in) in length, 1873 mm (73.7 in) in width, and 1471 mm (57.9 in) in height. The wheelbase is 2702 mm (106.4 in).

What is the ground clearance of the EC40?

The ground clearance of the EC40 is 171 mm (6.7 in).

What is the towing capacity of the EC40?

Unbraked trailer: 750 kg (1653 lb). Braked trailer: 1500 kg (3307 lb).

What is the motor power in the EC40?

The EC40 features a motor delivering 185 kW (248 hp) and 330 Nm (243 lb-ft) of torque.

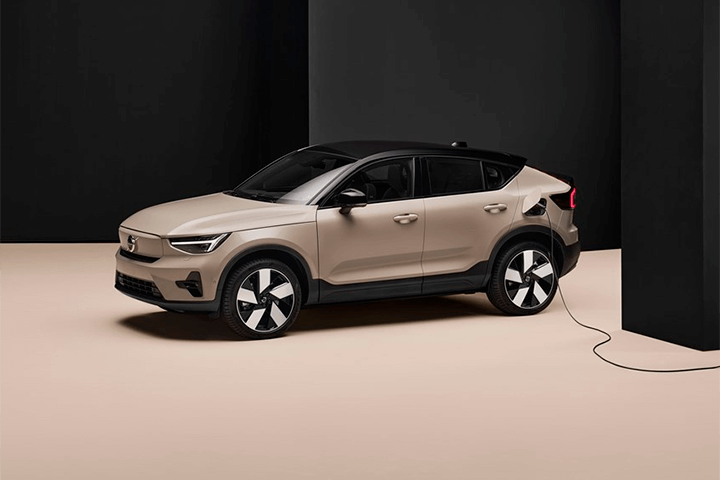

2024 Volvo EC40 Single Motor 69.0 kWh 248 hp Battery, Horsepower, Range

Name: Volvo EC40 Single Motor
Brand: Volvo
Price: 48900 EUR
Availability: InStock

VIEW ALL BRANDS

Used Volkswagen e-Golf Problems and Fixes (2013 – 2020).

Volvo EC40

Single Motor | 2024–

69 kWh

451 km

185 kW

7.3 s

TRIM (VARIANT) :

Technical Data & Performance
Model Years	2024–present
Trim (Variant)	EC40 - Single Motor
Power (Horsepower)	185 kW (248 hp)
Top Speed	180 km/h (112 mph)
Torque	330 Nm (243 lb-ft)
Acceleration	7.3 sec (0–100 km/h) 7.3 sec (0–62 mph)
Drive	RWD Front-wheel drive
Motor details	Single (Rear PSM)
Battery & Charging
Battery Capacity & Size	66.0 kWh usable, 69.0 kWh gross
Max Range	451 km (280 mi) / WLTP 345 km (214 mi) / EPA
Consumption	16.1 kWh/100 km
Battery Type	Lithium-ion
Cell Format / Supplier	NCA (Nickel Cobalt Aluminum) Volvo
Battery Voltage	400 V
V2L Supported	No
Heat pump	Yes
AC Home Charging	Type2 / 1-phase - 7 kW (Max Power) Type2 / 3-phase - 11 kW (Max Power)
DC Fast Charging	CCS2, 150 kW (Max Power) 28 min. (10–80%)

Dimensions & Body
Type	5 door, Crossover SUV
Seating capacity	5
Length	4440 mm (174.8 in)
Width	1873 mm (73.7 in)
Height	1471 mm (57.9 in)
Wheelbase	2702 mm (106.4 in)
Ground Clearance	171 mm (6.7 in)
Curb weight	2040 kg (4497 lb)
Gross weight	2510 kg (5534 lb)
Trunk Volume	413 L (14.6 ft³) 1205 L (42.5 ft³) max
Towing	Unbraked: 750 kg (1653 lb), Braked: 1500 kg (3307 lb)
Drag Coefficient	0.32
Platform	CMA
Estimated Market Price * for reference only	EUR 48,900 / USD 48,900
