What is the real-world range of the CX-30 EV?

The CX-30 EV offers a range of up to 200 km (124 mi) / WLTP under WLTP standards, depending on driving conditions and trim.

How fast can the CX-30 EV charge (charging time & max power)?

It supports DC fast charging up to 50 kW, reaching 10–80% in about 40 minutes at compatible stations. AC charging is 11 kW from a home wallbox.

Does the CX-30 EV support V2L or bidirectional charging?

No, V2L (Vehicle-to-Load) or bidirectional charging is not supported in the standard model.

What is the trunk size of the CX-30 EV? Does it have a frunk?

The 2022 Mazda CX-30 EV EV has a trunk capacity of 366 L (12.9 ft³) standard, expandable to 1150 L (40.6 ft³) with rear seats folded. Frunk availability hasn't been officially confirmed yet.

What are the dimensions of the 2022 Mazda CX-30 EV EV — length, width, height, and wheelbase?

The 2022 Mazda CX-30 EV EV measures 4395 mm (173.0 in) in length, 1795 mm (70.7 in) in width, and 1540 mm (60.6 in) in height. The wheelbase is 2655 mm (104.5 in).

What is the ground clearance of the CX-30 EV?

The ground clearance of the CX-30 EV is 155 mm (6.1 in).

What is the towing capacity of the CX-30 EV?

Unbraked trailer: 500 kg (1102 lb). Braked trailer: 1000 kg (2205 lb).

What is the motor power in the CX-30 EV?

The CX-30 EV features a motor (e-Skyactiv Motor) delivering 160 kW (215 hp) and 300 Nm (220 lb-ft) of torque.

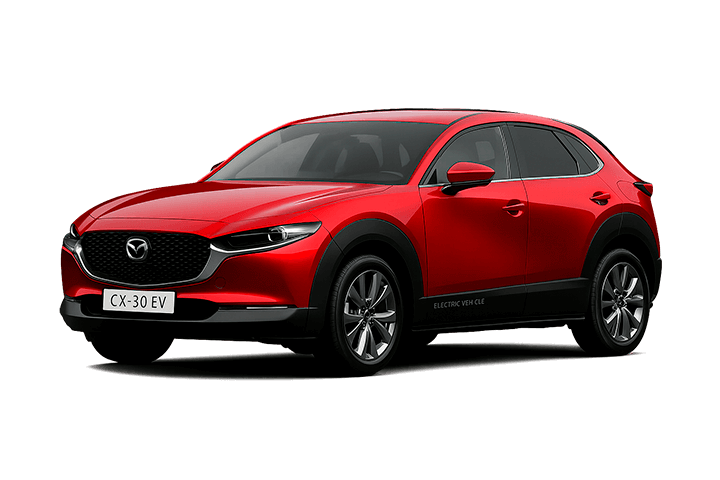

2022 Mazda CX-30 EV EV 35.5 kWh 215 hp Battery, Horsepower, Range

Name: Mazda CX-30 EV EV
Brand: Mazda
Availability: InStock

VIEW ALL BRANDS

Used Volkswagen e-Golf Problems and Fixes (2013 – 2020).

Mazda CX-30 EV

EV | 2022–

36 kWh

200 km

160 kW

9.0 s

TRIM (VARIANT) :

Technical Data & Performance
Model Years	2022–present
Trim (Variant)	CX-30 EV - EV
Power (Horsepower)	160 kW (215 hp)
Top Speed	140 km/h (87 mph)
Torque	300 Nm (220 lb-ft)
Acceleration	9.0 sec (0–100 km/h) 9.0 sec (0–62 mph)
Drive	FWD Front-wheel drive
Motor details	Single Permanent Magnet Synchronous Motor
Motor code	e-Skyactiv Motor
Battery & Charging
Battery Capacity & Size	30.0 kWh usable, 35.5 kWh gross
Max Range	200 km (124 mi) / WLTP 161 km (100 mi) / EPA 256 km (159 mi) / CLTC
Consumption	17.8 kWh/100 km
Battery Type	Lithium-ion
Cell Format / Supplier	LFP (Lithium Iron Phosphate)
Battery Voltage	400 V
V2L Supported	No
Heat pump	Yes
AC Home Charging	Type2 / 1-phase - 6.6 kW (Max Power) Type2 / 3-phase - 11 kW (Max Power)
DC Fast Charging	CCS2, 50 kW (Max Power) 40 min. (10–80%)

Dimensions & Body
Type	5 door, SUV
Seating capacity	5
Length	4395 mm (173.0 in)
Width	1795 mm (70.7 in)
Height	1540 mm (60.6 in)
Wheelbase	2655 mm (104.5 in)
Ground Clearance	155 mm (6.1 in)
Curb weight	1620 kg (3571 lb)
Gross weight	2060 kg (4535 lb)
Trunk Volume	366 L (12.9 ft³) 1150 L (40.6 ft³) max
Towing	Unbraked: 500 kg (1102 lb), Braked: 1000 kg (2205 lb)
Drag Coefficient	0.30
Platform	Mazda Skyactiv EV
Estimated Market Price * for reference only	USD 30,000
